HVAC MOTORIZED DAMPERS

2 products


The Suncourt® 24V Motorized Damper is mounted in ductwork to control the amount of airflow in an HVAC system, Make-Up Air, or Fresh Air-Intake System.  Our motorized dampers will allow you to customize airflow throughout the home for improved air quality and comfort while delivering energy savings.

  • Simple, easy to install, 2-wire hysteresis gear motor

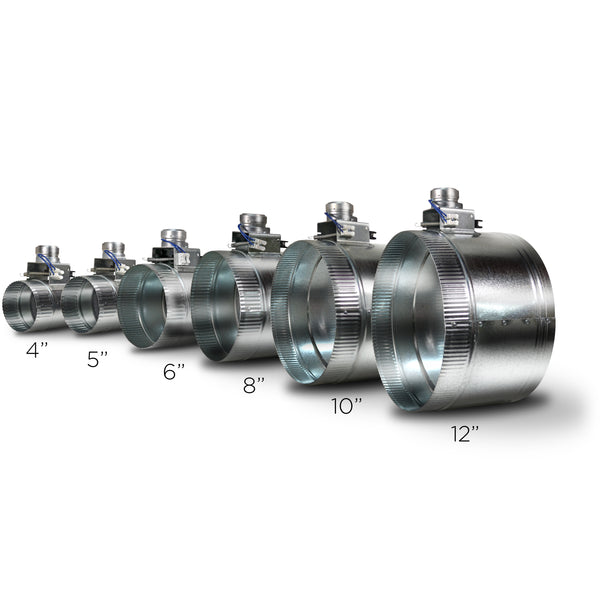

  • Choose between Power Open/Spring Return (Normally Closed) or Power Closed/Spring Return (Normally Open)

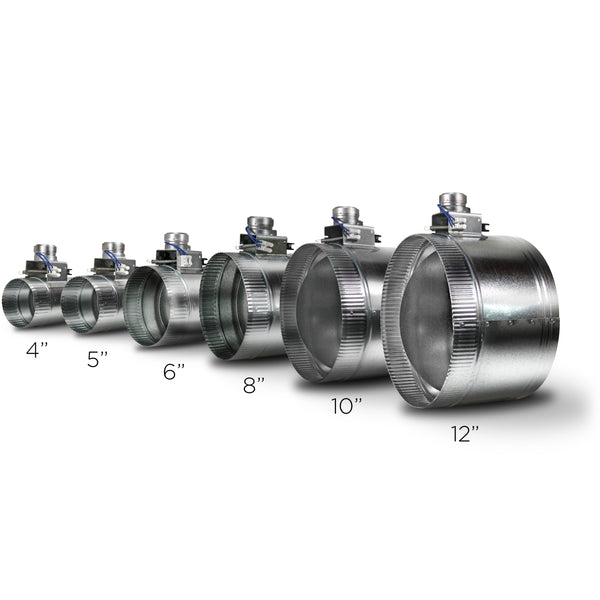

  • Available Sizes/Diameters - 4-inch, 5-inch, 6-inch, 8-inch, 10-inch, 12-inch
  • Patented Adjustable Coupler with set points from 0-90 degrees in both powered and unpowered positions
  • Male crimped and female uncrimped ends to connect to rigid or flexible round duct
  • 22-24 gauge galvanized steel pipes
  • 20-gauge blade closes against gasket for minimal leakage
  • Free-wheeling coupling for long life
  • Easily integrated with an existing zone controller system or any controller that supplies 24 Volts AC
  • Operate as a standalone device with either our stud-mount or plug-in UL-listed transformers.
    • Input - 120 VAC, 60 Hz
    • Output - 24 VAC, 60 Hz, 15 VA
  • Meets strict requirements for US government-funded Build America Buy America Act (BABAA) projects
  • Engineered and Assembled in the USA
  • 3-year limited warranty
