Collection 3 models

Collection: CONTROLLERS AND ACCESSORIES

Airflow does not always need to run at one fixed speed. The right variable speed control can help adjust fan operation to better match an application. Suncourt’s Controllers and Accessories collection includes two variable speed controls for compatible in-line fans, along with a current sensing switch for automatic on/off operation.

Our Controllers variable speed controllers and accessories built around three practical functions: adjusting fan speed, providing a convenient control format, and automatically switching compatible equipment when another device draws current.

  • VS100 hardwire variable speed control for compatible Inductor® and Centrax® fans.
  • VS200 plug-in variable speed control with a built-in receptacle for easy installation.
  • SWT050 current sensing switch for automatic on/off operation when current is detected from another device.
CONTROLLERS AND ACCESSORIES
VS100 Hardwire
VS200 Plug-In
2.5A Maximum Load
UL® Listed
1-Year Limited Warranty
Buying guide

How to choose CONTROLLERS AND ACCESSORIES

Optimize Airflow with Variable Speed Controls and Switches

Variable speed fan controllers adjust fan output to match specific application demands, preventing airflow imbalance, elevated static pressure, and unnecessary energy consumption. We offer two compatible options for our Inductor® In-Line Duct Booster Fans and Centrax® Centrifugal Fans: the VS100 for hardwired setups and the VS200 for plug-in installations. Both UL® Listed controllers feature minimum-speed adjustment and are rated for 120V / 60 Hz at a maximum load of 2.5A.

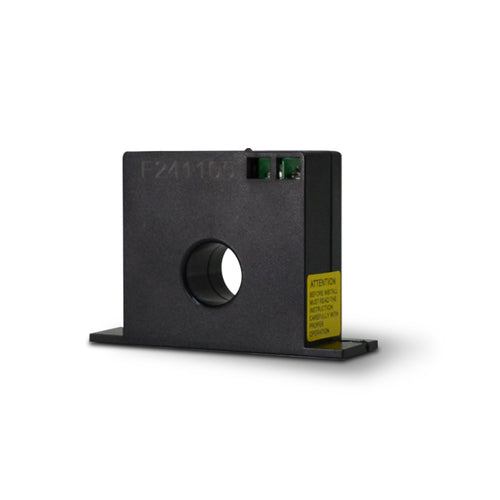

For automatic operation, the SWT050 Current Sensing Switch triggers a secondary 120V device on or off when it detects current from a primary equipment power supply. UL® Listed and rated to accept inputs from 0.5–200A, the SWT050 is ideal for pairing with dampers in make-up air intake systems or with centrifugal fans for dryer-boosting and exhaust applications.

Technical Specifications

Specification Details
Collection Controllers and Accessories
Products VS200 Plug-In Variable Speed Control; VS100 Hardwire Variable Speed Fan Control; SWT050 Current Sensing Switch
VS100 / VS200 Compatibility Inductor® In-Line Duct Booster Fans and Centrax® Centrifugal Fans
VS100 / VS200 Voltage 120V, 60 Hz
VS100 / VS200 Maximum Load 2.5A
VS100 / VS200 Adjustment Minimum-speed adjustment
VS200 Installation Plug-in receptacle
VS100 Installation Hardwire
VS100 / VS200 Safety Rating UL® Listed
SWT050 Function Automatic on/off when current is sensed from another device
SWT050 Input 120V, 60 Hz, 0.5–200A
SWT050 Maximum Ambient Temperature 140°F (60°C)
SWT050 Safety Rating UL® Listed
Warranty 1-year limited warranty for VS100, VS200, and SWT050
Category FAQ
01 What is a variable speed controller?
A variable speed controller adjusts the operating speed of a compatible fan. Our VS100 and VS200 provide minimum-speed adjustment and are compatible with Inductor® In-Line Duct Booster Fans and Centrax® Centrifugal Fans.
02 What is a variable fan speed controller used for?
A variable fan speed controller is used when a compatible fan needs adjustable airflow rather than one fixed speed. The correct setting depends on the fan, system resistance, and application.
03 Is the VS100 a variable speed controller for fan applications?
Yes. Suncourt VS100 Hardwire Variable Speed Fan Control as compatible with Inductor® In-Line Duct Booster Fans and Centrax® Centrifugal Fans. It is a 120V, 60 Hz controller with a maximum 2.5A load and minimum-speed adjustment.
04 What is the difference between the VS100 and VS200?
The VS100 is the hardwire version, while the VS200 uses a plug-in receptacle. Both are 120V, 60 Hz, support a maximum 2.5A load, provide minimum-speed adjustment, and are compatible with Suncourt Inductor® and Centrax® fans.
05 Can I use a variable speed control with any fan?
Not necessarily. Compatibility depends on the fan design and electrical requirements. Suncourt VS100 and VS200 are compatible with its Inductor® In-Line Duct Booster Fans and Centrax® Centrifugal Fans.
06 What does a current sensing switch do?
The SWT050 senses current from the power supply of another device and automatically turns a compatible 120V device on or off. It is best used for make-up air, fresh-air intake, dryer-boosting, and exhaust applications.
07 Is the current sensing switch a variable speed controller?
No. The SWT050 is an automatic on/off switching device, not a fan-speed adjustment control. VS100 and VS200 are Suncourt’s variable speed controls.
08 Are Suncourt variable speed controls UL Listed?
Yes. The VS100 and VS200 are UL® Listed. The SWT050 current sensing switch is also UL® Listed.
09 What is the warranty on Suncourt controllers and accessories?
We offer a 1-year limited warranty for the VS100, VS200, and SWT050 products, subject to its published warranty limitations.
