A radon mitigation fan is the powered part of an active radon reduction system. It creates negative pressure beneath a building, draws soil gas into a vent pipe, and exhausts it outdoors. Choosing the right fan is not simply a matter of matching pipe diameter or picking the highest CFM rating. Fan selection depends on the soil beneath the slab, suction-point design, pipe layout, system resistance, and the pressure and airflow the fan can produce.
For homes with elevated radon levels, active sub-slab depressurization is one of the most common radon reduction methods. EPA recommends fixing a home when testing shows 4.0 pCi/L or higher and considering action when levels are between 2 and 4 pCi/L.
How Does a Radon Mitigation Fan Work?
Radon forms naturally as uranium in soil and rock breaks down. Because the gas has no color or smell, testing is the only way to determine whether it has accumulated inside a home.
An active sub-slab system addresses radon before it enters the living space. A typical system includes:
- A suction point beneath the slab
- A gas-tight vent pipe
- A radon mitigation fan
- Exhaust piping that carries soil gas outdoors
- A warning device or manometer to show whether the system is operating
The fan pulls soil gas from below the building and creates a pressure difference beneath the slab. This gives radon-bearing soil gas a path into the vent system instead of allowing it to move through cracks and openings into the home. EPA identifies active sub-slab suction, also called sub-slab depressurization, as the most common and usually most reliable radon reduction method for basement and slab-on-grade homes.
A crawl-space home may require a different approach, such as submembrane depressurization. The correct system depends on the home's foundation and site conditions.
Why Does Radon Fan Sizing Matter?
A fan needs to create enough suction to establish the required pressure field below the slab. At the same time, the system must move enough air through the soil and piping to remove soil gas effectively.
That means a fan with a high free-air CFM rating is not automatically the right choice.
Three factors matter:
|
Factor |
Why it matters |
|
Airflow |
Determines how much air the fan can move |
|
Pressure or suction |
Determines how well the fan can overcome system resistance |
|
System resistance |
Comes from soil, piping, fittings, bends, and other restrictions |
EPA guidance notes that fan selection should consider airflow and suction capability, durability, noise, operating conditions, sealing, and inlet and outlet size.
CFM Is Only Part of the Equation
Fan specifications often show CFM at different operating conditions. Free-air CFM describes airflow when the fan faces little or no resistance. Once the fan is connected to a mitigation system, the airflow changes as resistance increases.
This is why comparing fans by their maximum CFM alone can lead to a poor selection.
A useful way to think about it is: Fan performance + system resistance = actual operating airflow
The fan curve and the system curve meet at the operating point. That point tells you more about expected performance than the maximum airflow printed on the box.
What Determines the Size of a Radon Mitigation Fan?
A proper fan selection starts with the mitigation system rather than the fan itself.
1. Soil Conditions
Air moves more easily through some sub-slab materials than others. Coarse, permeable material may require a different fan performance than dense or low-permeability material.
EPA guidance notes that pressure and flow measurements can provide information about sub-slab permeability and help with fan selection.
2. Number of Suction Points
A simple home may need one suction point. A larger or more complex foundation may require several. The number and location of suction points depend partly on how easily air can move beneath the slab and the strength of the radon source.
More suction points can change the airflow and pressure requirements of the system, so the fan should be selected as part of the overall design.
3. Pipe Length and Layout
Every foot of piping adds some resistance. So do bends, fittings, transitions, and other restrictions.
A system with a long pipe run may require a fan capable of maintaining useful suction at its expected operating pressure. Matching the fan to the pipe diameter alone does not account for these losses.
4. Foundation and System Type
Basement, slab-on-grade, and crawl-space homes may require different mitigation methods. Some homes also combine foundation types.
The fan should be selected for the actual mitigation method being used, rather than simply based on the home's square footage.
Can You Size a Radon Fan by House Size?
Square footage can provide context, but it is not enough to select a radon fan. Two homes with the same floor area can have very different:
- Soil conditions
- Foundation designs
- Suction-point layouts
- Pipe lengths
- Number of suction points
- Sub-slab communication
- Radon concentrations
A smaller house with difficult sub-slab conditions may need a different fan than a larger house with highly permeable material beneath the slab. The better question is not how large the house is. It is whether the selected fan can produce the pressure and airflow required by the mitigation system.

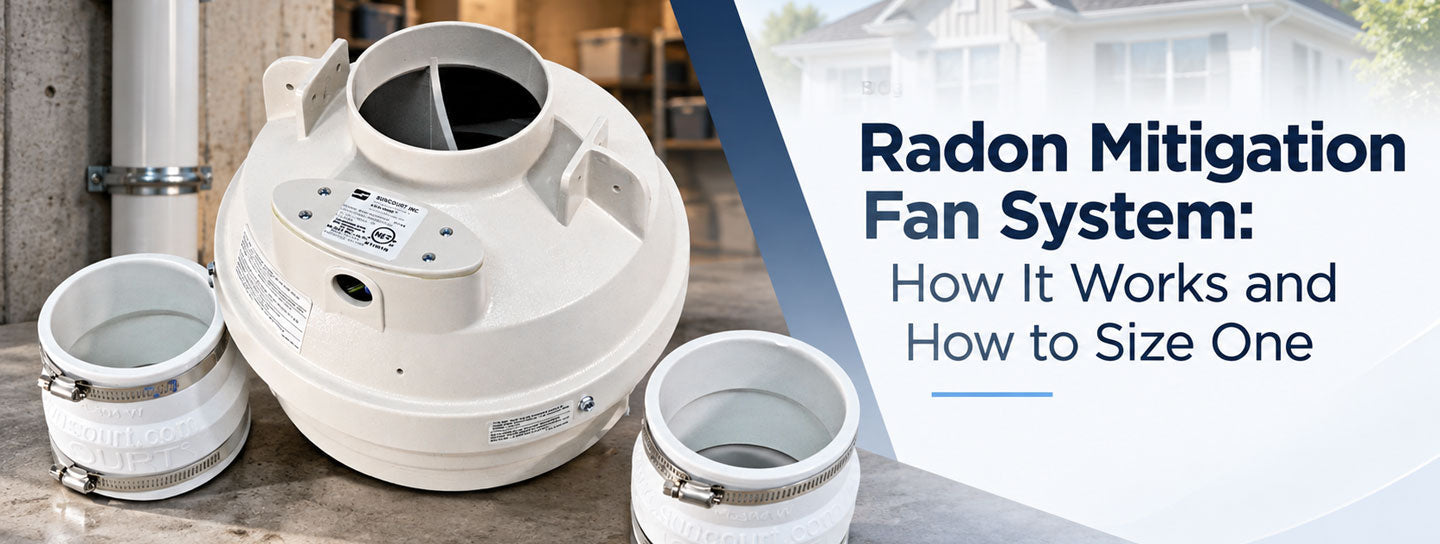

What Does the Suncourt RDN04 Radon Fan Provide?
Suncourt's RDN04 is a 4-inch Centrax® centrifugal fan designed for radon mitigation systems using sub-slab depressurization.
The kit provides:
- 235 CFM airflow
- 91 watts
- 0.76 amps
- 120V operation
- 4-inch inlet and outlet
- Continuous operation
- MET listing
- Automatic thermal reset
- UV-resistant housing
- Epoxy-sealed, watertight housing
- Anti-vibration PVC couplers
- 5-year limited warranty
The Centrax centrifugal design is intended to provide the high suction and pressure needed for sub-slab depressurization. The RDN04 kit includes the fan and two 4-inch to 4-inch anti-vibration PVC couplers.
For systems using 3-inch piping, the RDN04-3 includes two 4-inch to 3-inch anti-vibration couplers.
What Should You Check Before Selecting a Fan?
Before buying a replacement or designing a new system, review the entire mitigation layout.
Check the following:
- Existing pipe diameter
- Number and location of suction points
- Approximate pipe length
- Number of bends and fittings
- Foundation type
- Sub-slab conditions
- Existing fan performance
- System warning device or manometer
- Indoor or outdoor fan location
- Moisture and drainage conditions
A common mistake is choosing a fan because its inlet and outlet match the existing pipe. Physical fit matters, but it does not prove that the fan has enough pressure capability for the system.
What Is the Difference Between Airflow and Suction?
Airflow describes the volume of air the fan moves, usually measured in CFM. Suction or pressure capability describes how much resistance the fan can overcome while maintaining useful airflow.
Both matter in a radon mitigation system. A fan may have a high free-air CFM rating but lose much of that airflow when connected to a system with high resistance. A fan designed for higher suction may maintain useful airflow under those conditions.
General guidance on fan selection specifically considers airflow and suction capability when matching a fan to an active soil depressurization system.
What Can Cause a Radon System to Perform Poorly?
A properly selected fan can still underperform if another part of the system has a problem.
Watch for:
- Leaks in the vent piping
- Damaged or loose connections
- Blocked piping
- Water accumulation
- Debris or wildlife entering the exhaust pipe
- An incorrectly selected fan
- Insufficient suction-point coverage
- Foundation changes after installation
- A fan that is no longer operating
Suncourt specifically warns that water, debris, and wildlife must be prevented from reaching the fan. Water damage or damage to internal components caused by obstructions can void the warranty.
A system warning device should also be checked regularly. EPA notes that radon fans may last five years or more, but they can eventually require repair or replacement.
Does a Radon Mitigation Fan Run Continuously?
Yes. Active radon mitigation systems are designed to operate continuously.
Turning the fan off, even when the weather is mild, can stop the pressure difference that keeps soil gas moving toward the vent system. Regular checks of the system warning device and periodic radon testing can confirm that the system continues to work properly.
When Should You Test After Installing a Radon Fan?
Testing is the final check on system performance. EPA recommends a post-mitigation test within 30 days of installation and no sooner than 24 hours after the system begins operating. EPA also recommends retesting at least every two years.
A running fan does not prove that indoor radon has been reduced to an acceptable level. The test result provides that evidence.
